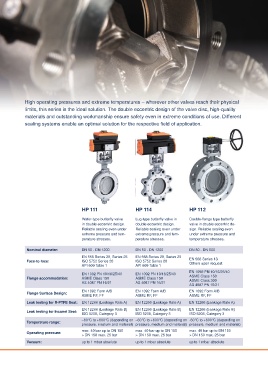

Page 8 - Desalination technology

High operating pressures and extreme temperatures – wherever other valves reach their physical
limits, this series is the ideal solution. The double eccentric design of the valve disc, high-quality
materials and outstanding workmanship ensure safety even in extreme conditions of use. Diff erent
sealing systems enable an optimal solution for the respective fi eld of application.

HP 111 HP 114 HP 112
Wafer-type butterfl y valve Lug-type butterfl y valve in Double-fl ange type butterfl y
in double eccentric design. double eccentric design. valve in double eccentric de-
Reliable sealing even under Reliable sealing even under sign. Reliable sealing even
extreme pressure and tem- extreme pressure and tem- under extreme pressure and
perature stresses. perature stresses. temperature stresses.

Nominal diameter: DN 50 - DN 1200 DN 50 - DN 1200 DN 80 - DN 600
EN 558 Series 20, Series 25 EN 558 Series 20, Series 25 EN 558 Series 13
Face-to-face: ISO 5752 Series 20 ISO 5752 Series 20 Others upon request
API 609 Table 1 API 609 Table 1

EN 1092 PN 10/16/25/40 EN 1092 PN 10/16/25/40 EN 1092 PN 10/16/25/40
Flange accommodation: ASME Class 150 ASME Class 150 ASME Class 150
ASME Class 300
AS 4087 PN 16/21 AS 4087 PN 16/21
AS 4087 PN 16/21
EN 1092 Form A/B EN 1092 Form A/B EN 1092 Form A/B
Flange Surface Design:
ASME RF, FF ASME RF, FF ASME RF, FF
Leak testing for R-PTFE Seat: EN 12266 (Leakage Rate A) EN 12266 (Leakage Rate A) EN 12266 (Leakage Rate A)
Leak testing for Inconel Seat: EN 12266 (Leakage Rate B) EN 12266 (Leakage Rate B) EN 12266 (Leakage Rate B)
ISO 5208, Category 3 ISO 5208, Category 3 ISO 5208, Category 3
–60°C to +600°C (depending on –60°C to +600°C (depending on -60°C to +600°C (depending on
Temperature range:
pressure, medium and material) pressure, medium and material) pressure, medium and material)
Operating pressure: max. 40 bar up to DN 150 max. 40 bar up to DN 150 max. 40 bar up to DN 150
> DN 150 max. 25 bar
> DN 150 max. 25 bar
> DN 150 max. 25 bar
Vacuum: up to 1 mbar absolute up to 1 mbar absolute up to 1 mbar absolute
