LUG TYPE BUTTERFLY VALVE Z 614-C LUG TYPE BUTTERFLY VALVE Z 614-C

MATERIAL SPECIFICATION AND PARTS LIST
ØF Ød2
ØW G
H2 h1

A

ØD2 ØDi
C
DN ØM1 ØM2 Z Ød1 ØD

B

J
E

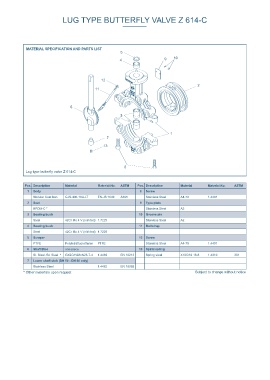

Z 614-C with bare shaft end acc. to EN ISO 5211 Lug type butterfly valve Z 614-C

Dimensions [mm] Pos. Description Material Material-No. ASTM Pos. Description Material Material-No. ASTM
DN Size Weight 1 Body 8 Screw
[mm] [in] A B C ØD ØD2 ØDi Ød2 E Flange ØF G h1 H2 J ØM1 ØM2 ØW Z [kg]
50 2 135 80,5 215,5 95 155 49 55 43 F07 90 11 3 22 167 53 86 14 25 3,7 Nodular Cast Iron GJS-400-18U-LT EN-JS 1049 A395 Stainless Steel A4-70 1.4401
80 3 165 100 265 138 192 79 55 46 F07 90 14 3 26 227 82,5 123 18 65 6,3 2 Seat 9 Type plate
100 4 174 111 285 158 212 99 55 52 F07 90 14 3 26 266 102 145 18 85 8,5 EPDM-C * Stainless Steel A2
150 6 212 147 359 212 280 149 55 56 F07 90 17 3 31 322 153 198 22 139 13,5 3 Bearing bush 10 Groove pin
200 8 238 172 410 268 335 199 70 60 F10 125 17 3 31 390 203 253 22 190 21,5 Steel 42Cr Mo 4 V (nitrided) 1.7225 Stainless Steel A2
250 10 275 209 484 320 395 249 70 68 F10 125 22 3 40,5 481 253 305 28 240 32,5 4 Bearing bush 11 Buttstrap
300 12 303 234 537 370 460 299 85 78 F12 150 22 3 40,5 558 301 356 28 287 48,5 Steel 42Cr Mo 4 V (nitrided) 1.7225
Subject to change without notice 5 Scraper 12 Screw
PTFE Polytetrafluorethylen PTFE Stainless Steel A4-70 1.4401
6 Shaft/Disc one-piece 13 Spiral spring
St. Steel /St. Steel * GX2CrNiMoN26-7-4 1.4469 EN 10213 Spring steel X10CrNi 18-8 1.4310 301
7 Lower shaft stub (DN 50 - DN 80 only)
Stainless Steel 1.4462 EN 10088
* Other materials upon request Subject to change without notice
