Page 61 - Catalogue 2019
P. 61

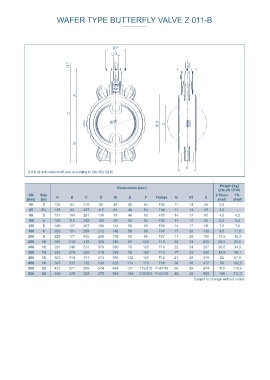

WAFER TYPE BUTTERFLY VALVE Z 011-B WAFER TYPE BUTTERFLY VALVE Z 011-B
ØF MATERIAL SPECIFICATION AND PARTS LIST
□G
9
H 1
3
6 8
A
7 1 14
2 15
C 10
3 16
Ø Di ØD Z 11 4 17
12
5
13 6
B
Pts. 14-17:
E Cover plate for
Z 011-B with bare shaft end according to EN ISO 5211 TS-Version Version with splitted shaft valve ≥ DN 350
Weight [kg] Pt. Description Material Material-No. ASTM Pt. Description Material Material-No. ASTM
Dimensions [mm]
(EN-JS 1030) 1 Body 10 TS-Shaft
DN Size 2 Piece TS- Grey Cast Iron EN-GJS-400-15 EN-JS 1030 A 536 Stainless Steel X14CrMoS17 1.4104 A314-430F
[mm] [in] A B C D Di E F Flange G H1 Z shaft shaft 2 Vulcanised liner 11 TS-Disc
50 2 126 84 210 95 49 43 54 F04 11 14 25 2,5 - 3 EPDM Ethylene propylene diene monomer rubber 12 Stainless Steel G-X5CrNiMo19-11-2 1.4408 A351-CF8M
Bearing bush
Sleeve
65 2½ 135 93 227 115 64 46 54 F04 11 14 45 3,0 - Heat treated steel 42CrMo4 1.7225 A434 Stainless Steel X5CrNi18-10 1.4301 A240-304
80 3 157 104 261 138 79 46 65 F05 14 17 65 4,0 4,5 4 Seal 13 Retaining ring
100 4 168 115 282 158 99 52 65 F05 14 17 85 5,0 5,6 5 Copper Cu Copper 14 Stainless Steel X39CrMo17-1 1.4122
O-Ring
Plug screw DIN 908
125 5 180 127 307 188 124 56 65 F05 14 17 111 7,0 7,6 Stainless Steel G-X5CrNiMo 19-11-2 1.4408 A351-CF8M NBR Nitrile butadiene rubber
150 6 203 151 354 212 148 56 88 F07 17 20 139 9,5 11,0 6 Shaft 15 Shaft retainer
200 8 229 177 405 268 199 60 88 F07 17 20 190 13,5 15,3 7 Stainless Steel X14CrMoS17 1.4104 A314-430F 16 Brass CuZn39Pb3 2.0401 B455
Disc
Cover plate
250 10 266 212 478 320 248 68 125 F10 22 24 240 22,5 25,5 Stainless Steel G-X5CrNiMo 19-11-2 1.4408 A351-CF8M Grey Cast Iron EN-GLS-250 EN-JL 1040 A48-40B
300 12 291 240 531 370 296 78 125 F10 22 24 287 30,5 34,0 8 Plug screw DIN 915 17 Screw
350 14 332 270 602 415 338 78 150 F12 27 29 330 43,5 49,1 9 Steel 45 H galvanized Steel 45 H galvanized
Wiper ring
400 16 363 314 677 473 390 102 150 F12 27 29 378 62 67,8 PTFE Polytetrafluorethylene PTFE PTFE
450 18 397 335 732 530 426 114 175 F16 36 38 417 98 102,5 Other materials upon request
500 20 437 371 808 574 489 127 175/210 F14/F16 36 38 474 110 116,5 Subject to change without notice
600 24 498 435 933 675 582 154 210/300 F16/F25 46 48 563 185 212,0
Subject to change without notice
