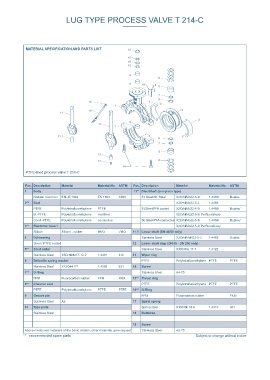

LUG TYPE PROCESS VALVE T 214-C LUG TYPE PROCESS VALVE T 214-C

MATERIAL SPECIFICATION AND PARTS LIST

T 214-C with bare shaft end acc. to EN ISO 5211 PTFE-lined process valve T 214-C

Dimensions [mm] Pos. Description Material Material-No. ASTM Pos. Description Material Material-No. ASTM
DN Size Weight 1 Body 11** Disc/Shaft (one-piece type)
[mm] [in] A B C ØD ØD2 ØDi E Flange ØF G h1 H2 J Z [kg] Nodular Cast Iron EN-JS 1049 EN 1563 A395 St. Steel/St. Steel X2CrNiMo22-5-3/ 1.4469/ Duplex
40/50 1½ 2 126 95 221 104 155 49 43 F07 90 11 3 22 167 25 4,5
65 2½ 150 103 253 120 175 61 46 F07 90 11 3 22 181 41 5,5 2** Seat X2CrNiMo22-5-3 1.4469
80 3 157 124 281 138 190 80 46 F07 90 14 3 26 227 66 8,0 PTFE Polytetrafluorethylene PTFE St.Steel/PFA coated X2CrNiMo22-5-3/ 1.4469/ Duplex/
100 4 180 135 315 160 210 100 52 F07 90 14 3 26 266 85 10,0 M.-PTFE Polytetrafluorethylene modified X2CrNiMo22-5-3/ Perfluoralkoxy
150 6 210 167 377 212 280 151 56 F10 125 17 3 31 322 141 15,0 Cond.-PTFE Polytetrafluorethylene conductive St. Steel/PFA conductive X2CrNiMo22-5-3/ 1.4469/ Duplex/
200 8 240 190 430 268 336 196 60 F12 150 17 3 31 390 187 27,0 3** Elastomer insert X2CrNiMo22-5-3/ Perfluoralkoxy
250 10 275 232 507 324 412 248 68 F12 150 22 3 40,5 481 239 45,0 Silicon Silicon - rubber MVQ VMQ 11.1 Lower shaft (DN 40/50 only)
300 12 298 260 558 374 460 293 78 F14 175 22 4 41,5 558 283 69,0 4 DU-bearing Stainless Steel X2CrNiMoN22-5-3 1.4469 Duplex
Subject to change without notice Steel / PTFE coated 12 Lower shaft stup (DN 65 - DN 200 only)
5** Trust collar Stainless Steel X39CrMo 17-1 1.4122
Stainless Steel X5CrNiMo17-12-2 1.4401 316 13 Wiper ring
6 Belleville spring washer PTFE Polytetrafluorethylene PTFE PTFE
Stainless Steel X12CrNi177 1.4568 631 14 Screw
7** O-Ring Stainless Steel A4-70
FPM Fluorocarbon rubber FPM FKM 15** Thrust ring
8** Chevron seal PTFE Polytetrafluorethylene PTFE PTFE
PTFE Polytetrafluorethylene PTFE PTFE 16** O-Ring
9 Groove pin FPM Fluorocarbon rubber FKM
Stainless Steel A2 17 Spiral spring
10 Type plate Spring steel X10CrNi 18-8 1.4310 301
Stainless Steel 18 Buttstrap

19 Screw
Above-mentioned materials of the basic version, other materials upon request Stainless Steel A2-70
** recommended spare parts Subject to change without notice
