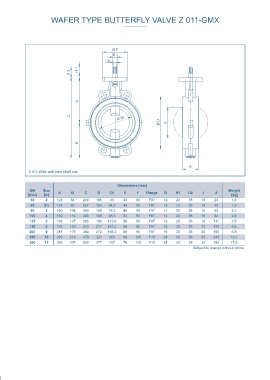

WAFER TYPE BUTTERFLY VALVE Z 011-GMX WAFER TYPE BUTTERFLY VALVE Z 011-GMX

ØF MATERIAL SPECIFICATION AND PARTS LIST
ØJ
□G 3 6

H 2 H 1 10 1 2

8

10
A
3

C
Ø Di
ØD Z 7
11

12
B
10 3 11
9 4 12
E 5
Z 011-GMX with bare shaft end

Dimensions [mm] Pt. Description Material Material-No. ASTM Pt. Description Material Material-No. ASTM
DN Size Weight 1 Body 7 Disc
[mm] [in] A B C D Di E F Flange G H1 H2 J Z [kg] Aluminiumalloy G-AlSi10Mg 3.2381 361.1 Stainless Steel G-X6CrNiMo18-10 1.4401 CF8M
50 2 126 84 210 105 49 43 90 F07 12 20 38 16 24 1,6 2 Seat Coating GMX Polyurethane
65 2½ 134 93 227 125 64,3 46 90 F07 12 20 38 16 45 1,9 GMX Polyurethane 8/9 Shaft
80 3 140 104 244 140 78,2 46 90 F07 12 20 38 16 64 2,2 3 Bearing sleeve Stainless Steel X14CrMoS17 1.4104 430 F
100 4 150 115 265 160 98,6 52 90 F07 12 20 38 16 84 2,8 Brass MS 58 2.0401 B 45 X5/(X2)CrNiMo17-12-2 1.4401/1.4404 316
125 5 163 127 290 190 123,6 56 90 F07 12 20 38 16 111 3,5 4 Seal DIN 7603 10 O-ring
150 6 193 150 343 217 148,5 56 90 F07 16 20 38 20 138 4,6 Copper Cu Copper NBR Nitrile butadiene rubber
200 8 218 176 394 272 198,2 60 90 F07 16 20 38 20 190 6,8 5 Plug screw DIN 908 11 Washer
250 10 266 212 478 327 250 68 125 F10 24 20 38 30 240 12,3 Stainless Steel G-X6CrNiMo18-10 CF8M Stainless Steel X5CrNiM17-12-2 1.4401 316
300 12 293 237 530 377 297 78 125 F10 24 20 38 30 289 17,0 6 Set screw DIN 915 12 Screw
Subject to change without notice Steel 45 H galvanized 1.4408 Stainless Steel A2-70 B 8
Stainless Steel A4-70 B8M A4-70 B8M
Other materials upon request
