EBRO PRODUCTS | RESILIENT SEATED VALVES

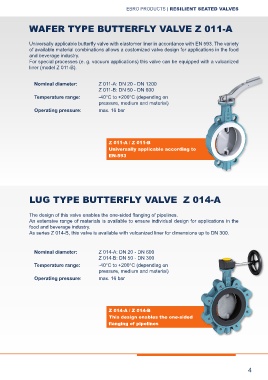

WAFER TYPE BUTTERFLY VALVE Z 011-A

Universally applicable butterfly valve with elastomer liner in accordance with EN 593. The variety
of available material combinations allows a customized valve design for applications in the food
and beverage industry.
For special processes (e. g. vacuum applications) this valve can be equipped with a vulcanized
liner (model Z 011-B).

Nominal diameter: Z 011-A: DN 20 - DN 1200
Z 011-B: DN 50 - DN 600
Temperature range: -40°C to +200°C (depending on
pressure, medium and material)
Operating pressure: max. 16 bar

Z 011-A / Z 011-B
Universally applicable according to
EN-593

LUG TYPE BUTTERFLY VALVE Z 014-A

The design of this valve enables the one-sided flanging of pipelines.
An extensive range of materials is available to ensure individual design for applications in the
food and beverage industry.
As series Z 014-B, this valve is available with vulcanized liner for dimensions up to DN 300.

Nominal diameter: Z 014-A: DN 20 - DN 600
Z 014-B: DN 50 - DN 300
Temperature range: -40°C to +200°C (depending on
pressure, medium and material)
Operating pressure: max. 16 bar

Z 014-A / Z 014-B
This design enables the one-sided
flanging of pipelines
