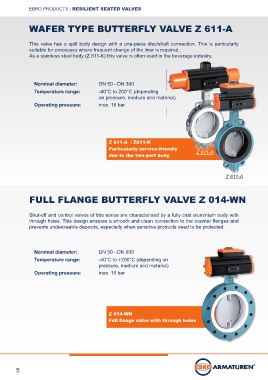

EBRO PRODUCTS | RESILIENT SEATED VALVES

WAFER TYPE BUTTERFLY VALVE Z 611-A

This valve has a split body design with a one-piece disc/shaft connection. This is particularly
suitable for processes where frequent change of the liner is required.
As a stainless steel body (Z 611-K) this valve is often used in the beverage industry.

Nominal diameter: DN 50 - DN 300
Temperature range: -40°C to 200°C (depending
on pressure, medium and material)
Operating pressure: max. 16 bar

Z 611-A / Z611-K
Particularly service-friendly
due to the two-part body Z 611-K

Z 611-A

FULL FLANGE BUTTERFLY VALVE Z 014-WN

Shut-off and control valves of this series are characterised by a fully cast aluminium body with
through holes. This design ensures a smooth and clean connection to the counter flanges and
prevents undesireable deposits, especially when sensitive products need to be protected.

Nominal diameter: DN 50 - DN 600
Temperature range: -40°C to +200°C (depending on
pressure, medium and material)
Operating pressure: max. 10 bar

Z 014-WN
Full flange valve with through holes
