EBRO PRODUCTS | SPECIAL APPLICATIONS

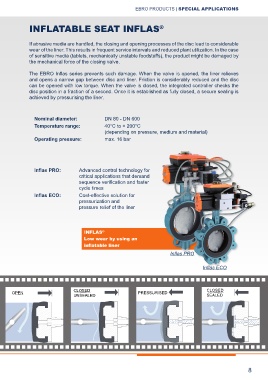

INFLATABLE SEAT INFLAS ®

If abrasive media are handled, the closing and opening processes of the disc lead to considerable
wear of the liner. This results in frequent service intervals and reduced plant utilization. In the case
of sensitive media (tablets, mechanically unstable foodstuffs), the product might be damaged by
the mechanical force of the closing valve.

The EBRO Inflas series prevents such damage. When the valve is opened, the liner relieves
and opens a narrow gap between disc and liner. Friction is considerably reduced and the disc
can be opened with low torque. When the valve is closed, the integrated controller checks the
disc position in a fraction of a second. Once it is established as fully closed, a secure sealing is
achieved by pressurising the liner.

Nominal diameter: DN 80 - DN 600
Temperature range: 40°C to + 200°C
(depending on pressure, medium and material)
Operating pressure: max. 16 bar

Inflas PRO: Advanced control technology for
critical applications that demand
sequence verification and faster
cycle times
Inflas ECO: Cost-effective solution for
pressurization and
pressure relief of the liner

INFLAS ®
Low wear by using an
inflatable liner
Inflas PRO

Inflas ECO

CLOSED CLOSED
OPEN PRESSURISED
UNSEALED SEALED
