HIGH PERFORMANCE BUTTERFLY VALVE HP 114-C HIGH PERFORMANCE BUTTERFLY VALVE HP 114-C

MATERIAL SPECIFICATION AND PARTS LIST

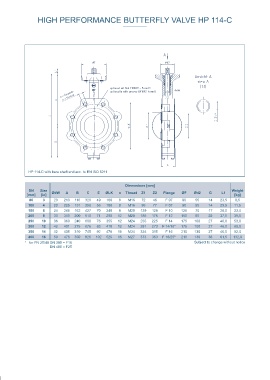

HP 114-C with bare shaft end acc. to EN ISO 5211

Dimensions [mm] Pos. Description Material Material-No. ASTM Pos. Description Material Material-No. ASTM
DN Size Weight 1 Body 12 Seal
[mm] [in] ØdW A B C E ØLK n Thread Z1 Z2 Flange ØF Ød2 G L1 [kg] Carbon Steel GP240GH 1.0619 A216 WCB Graphite
80 3 20 210 110 320 49 160 8 M16 72 46 F 07 90 55 14 23,5 8,5 Stainless Steel GX5CrNiMo 19-11-2 1.4408 A351 CF8M PTFE
100 4 20 225 131 356 56 180 8 M16 95 77 F 07 90 55 14 23,5 11,5 2 Disc 13 Spacer sleeve
150 6 24 265 162 427 70 240 8 M20 139 128 F 10 125 70 17 28,0 23,0 3 Stainless Steel GX5CrNiMo 19-11-2 1.4408 A351 CF8M 14 Stainless Steel X6CrNiMoTi 17-12-2 1.4571 316 Ti
Clamping ring
Cover plate
200 8 30 310 200 510 71 295 12 M20 185 176 F 12 150 85 22 37,0 39,5 Steel S235JR 1.0038 283-C Stainless Steel X8CrNiS 18-9 1.4305 304
250 10 36 360 240 600 76 355 12 M24 235 225 F 14 175 100 27 46,0 53,0 Stainless Steel X5CrNiMo 17-12-2 1.4401 316 Stainless Steel X5CrNiS 18-10 1.4301 304
300 12 42 401 275 676 83 410 12 M24 281 273 F 14/16* 175 100 27 46,0 69,0 Stainless Steel X2CrNiMo 17-12-2 1.4404 316 L 15 Turcon-Variseal-M2
350 14 42 435 310 745 92 470 16 M24 324 315 F 16 210 130 27 46,0 92,0 4.1 Through shaft (TS-version) PTFE / Metal spring
Stainless Steel
400 16 50 476 350 826 102 525 16 M27 373 363 F 16/25* 210 130 36 61,5 132,0 4.2 Splitted shaft X5CrNiCuNb 16-4 1.4542 630 16 Graphite seal
Graphite
* for PN 25/40 DN 300 = F16 Subject to change without notice Stainless Steel (< 300°C) X4CrNiMo16-5-1 1.4418 17 Hex. bolt
DN 400 = F25 Stainless Steel (> 300°C) X6NiCrTiMoVB 25-15-2 1.4980 Stainless Steel A4-70 B 8 M
Stainless Steel X5CrNiCuNb16-4 1.4542 18 Seal
5 Seat ring Graphite
R-PTFE PTFE-Compound PTFE
Inconel Inconel 625 19 Taper pin / distertion stop
6 Shaft bearing Stainless Steel X5CrNiCuNb 16-4 1.4542 630
Stainless Steel X5CrNiMo 17-12-2 1.4401 / PTFE 316 PTFE Stainless Steel X4CrNiMo 16-5-1 1.4418 431
Stainless Steel X6CrNiMoTi 17-12-2 1.4571 nitrite 316 Ti 20 Hex. bolt
7 Gland flange Stainless Steel A4-70 B 8 M
Stainless Steel GX2CrNiMoN 26-7-4 1.4469 A995 21 Washer
Stainless Steel X2CrNiMoN 22-5-3 1.4462 F51 Stainless Steel A4 8
8 Thrust collar Stainless Steel X6CrNiMoTi 17-12-2 1.4571 316 Ti
Stainless Steel X8CrNiS 18-9 1.4305 304 22 Threaded pin
Stainless Steel X5CrNiS 18-10 1.4301 304 Stainless Steel A4-70 B 8 M
9 Bearing ring 23 Hex. nut
Stainless Steel X6CrNiMoTi 17-12-2 1.4571 chr-pld 316 Ti Stainless Steel A4-70 B 8 M
10 Suppor. washer
Stainless Steel X6CrNiMoTi 17-12-2 1.4571 316 Ti
11 Taper pin
Stainless Steel X5CrNiCuNb 16-4 1.4542 630
Stainless Steel X4CrNiMo 16-5-1 1.4418 431
Subject to change without notice
