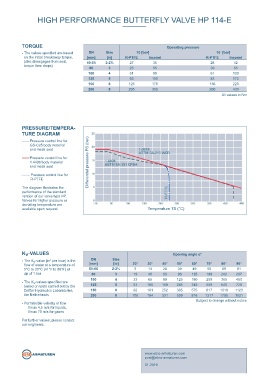

HIGH PERFORMANCE BUTTERFLY VALVE HP 114-E HIGH PERFORMANCE BUTTERFLY VALVE HP 114-E
TECHNICAL DATA TORQUE Operating pressure
Nominal diameter: DN 50 - DN 200 - The values specifi ed are based DN Size 10 [bar] 16 [bar]
(larger nominal diameter on request) on the initial breakaway torque. [mm] [in] R-PTFE Inconel R-PTFE Inconel
(disc disengages from seat, 50-65 2-2½ 27 35 28 42
torque then drops)
Face-to-face: EN 558 Series 20 80 3 28 55 30 65
ISO 5752 Series 20 100 4 51 90 61 100
API 609 Table 1
125 5 63 150 83 172
Flange accommodation: EN 1092 PN 10/16 150 6 125 170 136 220
ASME Class 150 200 8 205 350 260 430
AS 4087 PN16/21 All values in Nm
Flange Surface Design: EN 1092, Form A/B,
ASME RF,FF
Top fl ange: EN ISO 5211
Marking: EN 19 PRESSURE/TEMPERA-
TURE DIAGRAM
Tightness check Independent of fl ow-direction
- for R-PTFE seat: EN 12266 (Leakage rate A) ------ Pressure control line for
- for Inconel seat: EN 12266 (Leakage rate B) GS-C25 body material
ISO 5208, Category 3 and metal seat
Temperature range: -10°C to +450°C Pressure control line for
1.4408 body material Differential pressure PS (bar)
Differential pressure: see pressure/ temperature diagram and metal seat
. . .
Vacuum: up to 1mbar absolute - - - - Pressure control line for
Lug type butterfl y valve in double-eccentric construction. Reliable R-PTFE
sealing even with extreme temperature and pressure conditions.
The diagram illustrates the
performance of the standard
version of our valve type HP.
FEATURES Valves for higher pressure or
deviating temperature are
- Shut-off and control of gaseous and liquid media available upon request. Temperature TS (°C)
- Disc has double-eccentric bearing
- Centering pieces can be used as installation aid
- Two seat ring systems available: R-PTFE and Inconel
- Seal variants
soft-sealing (R-PTFE) max. 230°C
metallic sealing (Inconel) max. 450°C
- Maintenance-free
K -VALUES Opening angle α°
v
- The K -value [m³ per hour] is the DN Size
v
fl ow of water at a temperature of [mm] [in] 20° 30° 40° 50° 60° 70° 80° 90°
49
3
58
81
69
GENERAL APPLICATIONS 5°C to 30°C (41°F to 86°F) at 50-65 2-2½ 19 13 28 39 135 189 242 287
∆p of 1 bar
80
96
3
40
63
- Chemical and petrochemical industries - The K -values specifi ed are 100 4 33 65 89 125 180 259 365 450
v
- Hot water and steam systems based on tests carried out by the 125 5 53 105 169 245 342 509 645 728
Delfter Hydraulics Laboratories, 150 6 82 161 252 385 575 817 1010 1123
- District heat supply the Netherlands 200 8 105 184 331 559 816 1217 1795 1921
- Vacuum systems Subject to change without notice
- Shipbuilding The splitted shaft design allows better fl ow characteristics up to a - Permissible velocity of fl ow
Vmax 4,5 m/s for liquids,
- Gas process technology nominal pressure of 19 bar. Vmax 70 m/s for gases
- Food industries
For further values, please contact
- Heavy duty services our engineers.
post@ebro-armaturen.com
HP 114-E 3.4 www.ebro-armaturen.com
