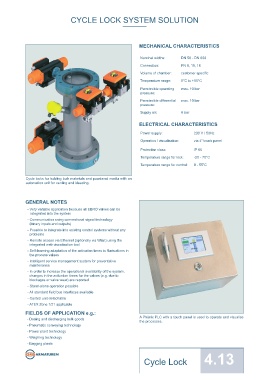

CYCLE LOCK SYSTEM SOLUTION CYCLE LOCK SYSTEM SOLUTION

MECHANICAL CHARACTERISTICS OPERATION AND VISUALISATION

Nominal widths: DN 50 - DN 600
Connection: PN 6, 10, 16
Volume of chamber: customer specifi c
Temperature range: 0°C to +55°C
Permissible operating max. 10 bar
pressure:
Permissible differential max. 10 bar
pressure:
Supply air: 6 bar

ELECTRICAL CHARACTERISTICS

Power supply: 230 V / 50Hz The main screen makes it possible to easily monitor the ongoing
Operation / visualisation: via 4” touch panel process and select the operating modes.

Protection class: IP 65
Temperature range for lock: -20 - 70°C
Temperature range for control: 0 - 55°C

Cycle locks for holding bulk materials and powdered media with an
automation unit for venting and bleeding. In the main menu, there is a manual operation option, all param-
eter settings are adjustable and the current process values can
be observed.
GENERAL NOTES
- Very variable application because all EBRO valves can be
integrated into the system
- Communication using conventional signal technology
(binary inputs and outputs)
- Possible to integrate into existing control systems without any
problems
- Remote access via Ethernet (optionally via Wlan) using the
integrated web visualisation tool
The cycle can be fl exibly adapted to the relevant process in the
- Self-learning adaptation of the activation times to fl uctuations in menu section “Process times”.
the process values
- Intelligent service management system for preventative
maintenance
- In order to increase the operational availability of the system,
changes in the activation times for the valves (e.g. due to
blockages or valve wear) are reported
- Stand-alone operation possible
- All standard fi eld bus interfaces available
- Control unit detachable
- ATEX Zone 1/21 applicable

FIELDS OF APPLICATION e.g.:
- Dosing and discharging bulk goods A Phönix PLC with a touch panel is used to operate and visualise
the processes.
- Pneumatic conveying technology
- Power plant technology
- Weighing technology
- Bagging plants
