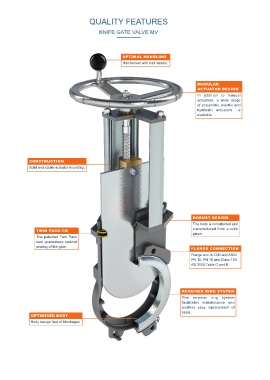

QUALITY FEATURES
KNIFE GATE VALVE MV
OPTIMAL HANDLING
Handwheel with ball handle.
MODULAR
ACTUATOR DESIGN
In addition to manual
actuators, a wide range
of pneumatic, electric and
hydraulic actuators is
available.
CONSTRUCTION
Solid and stable actuator mounting.
ROBUST DESIGN
The body is constructed and
TWIN PACK-TM manufactured from a solid
piece.
The patented Twin Pack
seal guarantees optimal
sealing of the gate. FLANGE CONNECTION
Flange acc. to DIN and ANSI.
PN 10, PN 16 and Class 150
AS 2129 Table D and E
RETAINER RING SYSTEM
The retainer ring system
facilitates maintenance and
enables easy replacement of
seals.
OPTIMISED BODY
Body design free of blockages.
