Page 46 - Catalogue 2019

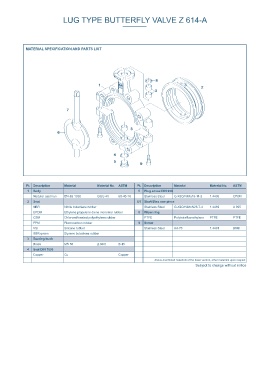

LUG TYPE BUTTERFLY VALVE Z 614-A LUG TYPE BUTTERFLY VALVE Z 614-A

MATERIAL SPECIFICATION AND PARTS LIST

Z 614-A with bare shaft end acc. to EN ISO 5211

Dimensions [mm] Pt. Description Material Material No. ASTM Pt. Description Material Material No. ASTM
DN Size Weight 1 Body 5 Plug screw DIN 908
[mm] [in] A B C D Di E F Flange G H1 J Z [kg] Nodular cast iron EN-JS 1030 GGG 40 60-40-18 Stainless Steel G-X5CrNiMo19-11-2 1.4408 CF8M
50 2 126 84 210 112 49 43 54 F04 11 13,5 167 25 4,9 2 Seat 6/7 Shaft/Disc one piece
65 2½ 134 93 227 120 64 46 54 F04 11 13,5 181 45 5,6 NBR Nitrile butadiene rubber Stainless Steel G-X2CrNiMoN26-7-4 1.4469 A 995
80 3 157 104 261 138 79 46 65 F05 14 17 227 64 8,7 EPDM Ethylene propylene diene monomer rubber 8 Wiper ring
100 4 167 115 282 160 99 52 65 F05 14 17 266 84 10,0 CSM Chlorosulfonated polyethylene rubber PTFE Polytetrafluorethylene PTFE PTFE
125 5 180 127 307 190 124 56 65 F05 14 17 300 110 10,2 FPM Fluorocarbon rubber 9 Screw
150 6 203 150 353 215 149 56 88 F07 17 20 322 138 13,2 VSI Silicone rubber Stainless Steel A4-70 1.4401 B8M
200 8 228 176 404 269 199 60 88 F07 17 20 390 189 19,0 SBR-green Styrene butadiene rubber
250 10 266 212 478 324 249 68 125 F10 22 23,5 481 239 29,7 3 Bearing bush
300 12 291 237 528 374 297 78 125 F10 22 23,5 558 286 37,2 Brass MS 58 2.0401 B 45
Subject to change without notice 4 Seal DIN 7603
Copper Cu Copper
Above-mentioned materials of the basic version, other materials upon request
