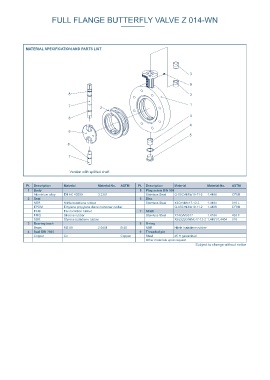

FULL FLANGE BUTTERFLY VALVE Z 014-WN FULL FLANGE BUTTERFLY VALVE Z 014-WN

□G ØF MATERIAL SPECIFICATION AND PARTS LIST

H

3

9
A
8 3

C 7 2 1
Z 3
8
4
6
B 5

8

7
E
ØD
Z 014-WN with bare shaft end according to EN ISO 5211 Version with splitted shaft

Dimensions [mm] Pt. Description Material Material-No. ASTM Pt. Description Material Material-No. ASTM
DN Size 1 Body 5 Plug screw DIN 908
[mm] [in] A B C ØD E ØF G H Z Flange Weight [kg] Aluminium alloy EN AC 43000 3.2381 Stainless Steel G-X5CrNiMo19-11-2 1.4408 CF8M
50 2 126 84,5 210,5 165 35 54 11 12 35,5 F04 2,1 2 Seat 6 Disc
65 2½ 134,5 93 227,5 185 35 54 11 12 54,5 F04 2,5 NBR Nitrile butadiene rubber Stainless Steel X2CrNiMo17-12-2 1.4404 316 L
Ethylene propylene diene monomer rubber
G-X5CrNiMo19-11-2
CF8M
1.4408
EPDM
80 3 157 104,5 261,5 200 35 65 14 16 71,5 F05 3 FKM Fluorocarbon rubber 7 Shaft
100 4 167,5 115,5 283 220 35 65 14 16 93,5 F05 3,5 FMQ Silicone rubber Stainless Steel X14CrMoS17 1.4104 430 F
125 5 180 128 308 250 40 65 14 16 117,5 F05 4,7 3 SBR Styrene butadiene rubber 8 O-ring X5/(X2)CrNiMo17-12-2 1.4401/1.4404 316
Bearing bush
150 6 203 151 354 285 40 90 17 19 143,5 F07 6,7 Brass MS 58 2.0401 B 45 NBR Nitrile butadiene rubber
200 8 228,5 176,5 405 340 50 90 17 19 193 F07 10,5 4 Seal DIN 7603 9 Threaded pin
250 10 281 213 494 395 68 125 22 24 240 F10 19,5 Copper Cu Copper Steel 45 H galvanized
300 12 293 238 531 445 65 125 22 24 290 F10 24,5 Other materials upon request Subject to change without notice
350 14 332 262 594 505 65 150 22 24 332,5 F12 30,5
400 16 363 306 669 565 75 150 22 24 382 F12 41
500 20 422 371 793 670 85 150 32 34 482 F12/14 -
600 24 470 434 904 780 85 175 32 34 576 F14 -
Subject to change without notice
