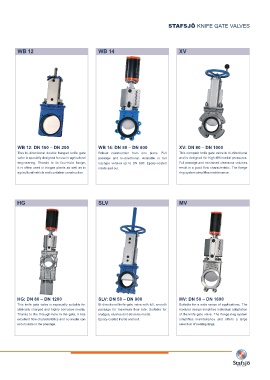

Page 29 - Product Overview

STAFSJÖ KNIFE GATE VALVES

WB 12 WB 14 XV

WB 12: DN 150 – DN 200 WB 14: DN 50 – DN 600 XV: DN 80 – DN 1000
This bi-directional double fl anged knife gate Robust construction from one piece. Full This compact knife gate valve is bi-directional
valve is specially designed for use in agricultural passage and bi-directional. Available in full and is designed for high differential pressures.
engineering. Thanks to its four-hole fl ange, lug-type version up to DN 600. Epoxy-coated Full passage and minimised clearance volumes
it is often used in biogas plants as well as in inside and out. result in a good fl ow characteristic. The fl ange
agricultural vehicle and container construction. ring system simplifi es maintenance.

HG SLV MV

HG: DN 80 – DN 1200 SLV: DN 50 – DN 900 MV: DN 50 – DN 1600
This knife gate valve is especially suitable for Bi-directional knife gate valve with full, smooth Suitable for a wide range of applications. The
statically charged and highly corrosive media. passage for maximum fl ow rate. Suitable for modular design simplifi es individual adaptation
Thanks to the through-hole in the gate, it has sludges, slurries and abrasive media. of the knife gate valve. The fl ange ring system
excellent fl ow characteristics and no media can Epoxy-coated inside and out. simplifies maintenance and offers a large
accumulate in the passage. selection of sealing rings.
