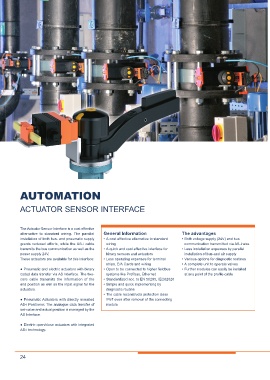

Page 24 - Product Overview

AUTOMATION

ACTUATOR SENSOR INTERFACE

The Actuator Sensor Interface is a cost effective
alternative to standard wiring. The parallel General Information The advantages
installation of both bus- and pneumatic supply • A cost effective alternative to standard • Both voltage supply (24V) and bus
grants reduced efforts, while the AS-i cable wiring communication transmitted via AS-i wire
transmits the bus communication as well as the • A quick and cost effective interface for • Less installation expenses by parallel
power supply 24V. binary sensors and actuators installation of bus-and air supply
These actuators are available for this Interface: • Less operating expenses for terminal • Various options for diagnostic routines
strips, E/A Cards and wiring • A complete unit to operate valves
● Pneumatic and electric actuators with binary • Open to be connected to higher fi eldbus • Further modules can easily be installed
coded data transfer via AS Interface. The two- systems like Profi bus, Ethernet at any point of the profi le cable
core cable transmits the information of the • Standardized acc. to EN 50295, IEC62026
end position as well as the input signal for the • Simple and quick implementing by
actuators. diagnostic routine
• The cable reconstructs protection class
● Pneumatic Actuators with directly mounted IP67 even after removal of the connecting
AS-i Positioner. The analogue data transfer of module
set-value and actual position is managed by the
AS Interface.
● Electric open/close actuators with integrated
AS-i technology.
