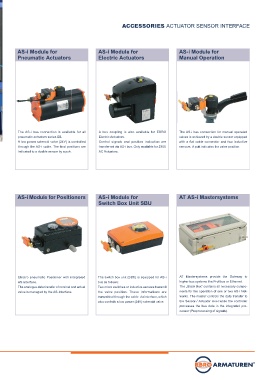

Page 25 - Product Overview

ACCESSORIES ACTUATOR SENSOR INTERFACE

AS-i Module for AS-i Module for AS-i Module for
Pneumatic Actuators Electric Actuators Manual Operation

The AS-i bus connection is available for all A bus coupling is also available for EBRO The AS-i bus connection for manual operated
pneumatic actuators series EB. Electric Actuators. valves is achieved by a double sensor equipped
A low power solenoid valve (24V) is controlled Control signals and position indication are with a fl at cable connector and two inductive
through the AS-i cable. The fi nal positions are transferred via AS-i bus. Only available for 230V sensors. A puk indicates the valve position.
indicated to a double sensor by a puk. AC Actuators.

AS-i Module for Positioners AS-i Module for AT AS-i Mastersystems
Switch Box Unit SBU

Electro pneumatic Positioner with integrated The switch box unit (SBU) is equipped for AS-i AT Mastersystems provide the Gateway to
AS-Interface. bus as follows: higher bus systems like Profi bus or Ethernet.
The analogue data transfer of nominal and actual Two micro switches or inductive sensors transmit The „Black Box“ contains all necessary compo-
value is managed by the AS-Interface. the valve position. These informations are nents for the operation of one or two AS-i Net-
transmitted through the cable via interface, which works. The master controls the data transfer to
also controls a low power (24V) solenoid valve. the Sensor-/ Actuator level while the controller
processes the bus data in the integrated pro-
cessor (Preprocessing of signals).
