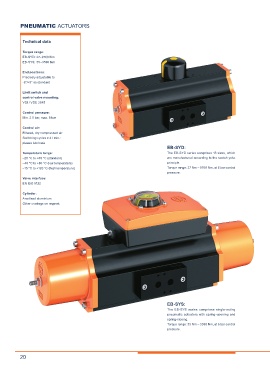

PNEUMATIC ACTUATORS

Technical data

Torque range:
EB-SYD: 27–9768 Nm
EB-SYS: 35–3590 Nm

End positions:
Precisely adjustable to
-8°/+3° as standard

Limit switch and
control valve mounting:
VDI / VDE 3845

Control pressure:
Min. 2.5 bar, max. 8 bar

Control air:
Filtered, dry compressed air
Switching cycles ≥ 4 / min.:
please lubricate
EB-SYD:
Temperature range: The EB-SYD series comprises 13 sizes, which
–20 °C to +80 °C (standard) are manufactured according to the scotch yoke
–40 °C to +80 °C (low temperature) principle.
–15 °C to +120 °C (high temperature) Torque range: 27 Nm – 9768 Nm, at 6 bar control
pressure.
Valve interface:
EN ISO 5122

Cylinder:
Anodised aluminium
Other coatings on request

EB-SYS:
The EB-SYS series comprises single-acting
pneumatic actuators with spring-opening and
spring-closing.
Torque range: 35 Nm – 3590 Nm, at 6 bar control
pressure.
