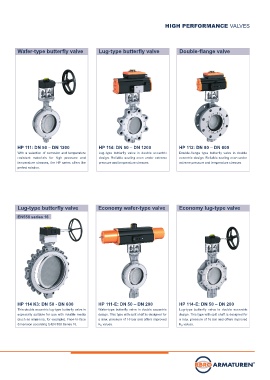

Page 17 - Product Overview

HIGH PERFORMANCE VALVES

Wafer-type butterfl y valve Lug-type butterfl y valve Double-fl ange valve

HP 111: DN 50 – DN 1200 HP 114: DN 50 – DN 1200 HP 112: DN 80 – DN 600
With a selection of corrosion and temperature Lug-type butterfl y valve in double eccentric Double-fl ange type butterfl y valve in double
resistant materials for high pressure and design. Reliable sealing even under extreme eccentric design. Reliable sealing even under
temperature stresses, the HP series offers the pressure and temperature stresses. extreme pressure and temperature stresses.
perfect solution.

Lug-type butterfl y valve Economy wafer-type valve Economy lug-type valve

EN558 series 16

HP 114 K3: DN 50 - DN 600 HP 111-E: DN 50 – DN 200 HP 114-E: DN 50 – DN 200
This double eccentric lug-type butterfl y valve is Wafer-type butterfl y valve in double eccentric Lug-type butterfl y valve in double eccentric
especially suitable for use with volatile media design. This type with split shaft is designed for design. This type with split shaft is designed for
(such as ammonia, for example). Face-to-face a max. pressure of 16 bar and offers improved a max. pressure of 16 bar and offers improved
dimension according to EN 558 Series 16. K values. K values.
