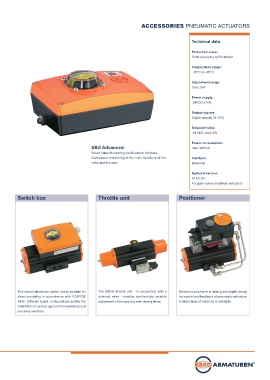

Page 21 - Product Overview

ACCESSORIES PNEUMATIC ACTUATORS

Technical data

Protection class:
IP 68 according to EN 60529

Temperature range:
-20°C to +70°C
Adjustment range:
0 bis 240°

Power supply:
24VDC ±10%

Output signals:
Digital outputs 24 VDC

Solenoid valve:
24 VDC, max 5W
Power consumption:
SBU Advanced: max. 200mA
Smart Valve Monitoring via Bluetooth interface.
Continuous monitoring of the main functions of the Interface:
valve and actuator. Bluetooth

Optional version:
ATEX 2D
For gate valves and linear actuators

Switch box Throttle unit Positioner

This robust aluminium switch box is suitable for The EBRO throttle unit - in conjunction with a Electronic positioner in analog and digital design
direct mounting in accordance with VDI/VDE solenoid valve - enables continuously variable for control and feedback of pneumatic actuators.
3845. Different board confi gurations enable the adjustment of the opening and closing times. A wide range of versions is available.
installation of various types of microswitches and
proximity switches.
