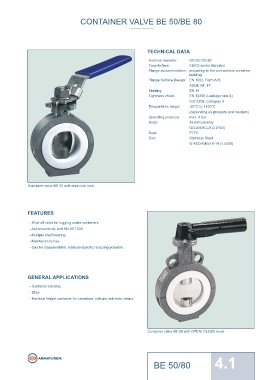

CONTAINER VALVE BE 50/BE 80

TECHNICAL DATA
Nominal diameter: DN 50/ DN 80
Face-to-face: EBRO works standard
Flange accommodation: according to the connections container
building
Flange Surface Design: EN 1092, Form A/B,
ASME RF, FF
Marking: EN 19
Tightness check: EN 12266 (Leakage rate A)
ISO 5208, Category 3
Temperature range: -20°C to +160°C
(depending on pressure and medium)
Operating pressure: max. 4 bar
Body: Aluminiumalloy
GD-AlSi9Cu3 (3.2163)
Seat: PTFE
Disc: Stainless Steel
G-X6CrNiMo18-10 (1.4408)

Container valve BE 50 with drain bolt lock.

FEATURES

- Shut-off valve for lugging under containers
- Aluminiumbody and EN JS 1030
- Multiple shaft bearing
- Maintenance-free
- Can be disassembled, material-specific recycling possible

GENERAL APPLICATIONS

- Container building
- Silos
- Hardous freight container for varnishes, colours, solvents, resins

Container valve BE 80 with OPEN/ CLOSE lever.

BE 50/80 4.1
