Page 143 - Catalogue 2019
P. 143

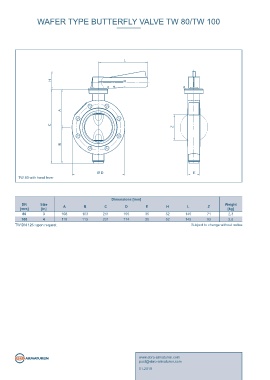

WAFER TYPE BUTTERFLY VALVE TW 80/TW 100
L
H
A
C
Z
B
Ø D E
TW 80 with hand lever
Dimensions [mm]
DN Size Weight
[mm] [in] A B C D E H L Z [kg]
80 3 108 103 211 155 35 52 145 71 2,3
100 4 118 113 231 174 35 52 145 93 2,6
TW DN 125: upon request Subject to change without notice
www.ebro-armaturen.com
post@ebro-armaturen.com
01.2019
