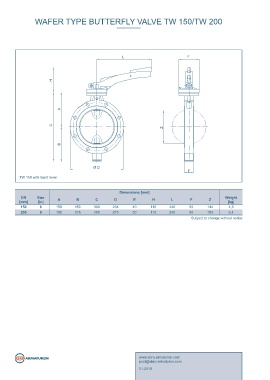

WAFER TYPE BUTTERFLY VALVE TW 150/TW 200
L F
H
A
C
Z
B
Ø D
E
TW 150 with hand lever
Dimensions [mm]
DN Size Weight
[mm] [in] A B C D E H L F Z [kg]
150 6 150 150 300 234 40 110 240 90 144 4,3
200 9 182 176 358 275 50 110 240 90 193 6,1
Subject to change without notice
