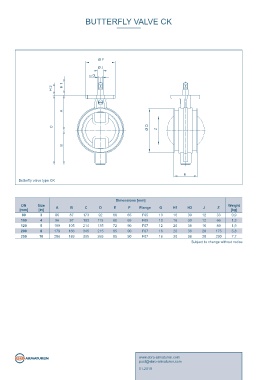

BUTTERFLY VALVE CK
Ø F
Ø J
□ G
H 2 H 1
A
C D
Ø Z
B
E
Butterfly valve type CK
Dimensions [mm]
DN Size Weight
[mm] [in] A B C D E F Flange G H1 H2 J Z [kg]
80 3 86 87 173 92 66 65 F05 10 16 30 12 33 0,9
100 4 96 97 193 115 68 65 F05 10 16 30 12 66 1,3
120 5 109 105 214 135 72 90 F07 12 20 38 16 89 1,9
200 8 179 166 345 215 85 90 F07 16 20 38 20 175 5,8
250 10 206 189 395 265 85 90 F07 16 20 38 20 230 7,7
Subject to change without notice
