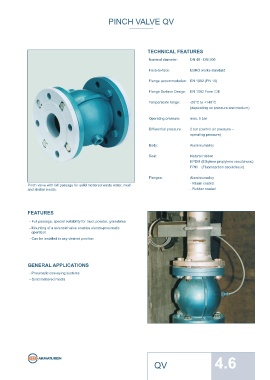

Page 154 - Catalogue 2019

PINCH VALVE QV

TECHNICAL FEATURES
Nominal diameter: DN 40 - DN 200

Face-to-face: EBRO works standard

Flange accommodation: EN 1092 (PN 10)

Flange Surface Design: EN 1092 Form C/E

Temperature range: -20°C to +140°C
(depending on pressure and medium)
Operating pressure: max. 5 bar

Differential pressure: 2 bar (control air pressure –
operating pressure)

Body: Aluminiumalloy

Seat: Natural rubber
EPDM (Ethylene propylene caoutchouc)
FPM (Fluorocarbon caoutchouc)

Flanges: Aluminiumalloy
- Rilsan coated
Pinch valve with full passage for solid mattered waste water, mud
and similar media. - Rubber coated

FEATURES
- Full passage, special suitability for mud, powder, granulates
- Mounting of a solenoid valve enables electro-pneumatic
operation
- Can be installed in any desired position

GENERAL APPLICATIONS

- Pneumatic conveying systems
- Solid mattered media

QV 4.6
