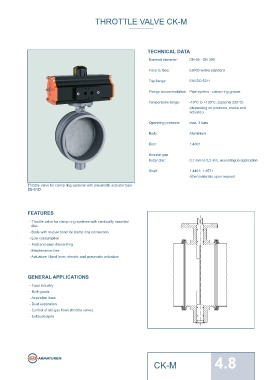

THROTTLE VALVE CK-M

TECHNICAL DATA
Nominal diameter: DN 65 - DN 300

Face to face: EBRO works standard

Top fl ange: EN ISO 5211

Flange accommodation: Pipe system - clamp ring groove

Temperature range: -10°C to +130°C, (optional 220°C)
(depending on pressure, media and
actuator)

Operating pressure: max. 3 bars

Body: Aluminium

Disc: 1.4301

Annular gap
body/ disc: 0,1 mm to 0,5 mm, according to application

Shaft: 1.4401; 1.4571
other materials upon request
Throttle valve for clamp ring systems with pneumatic actuator type
EB-SYD

FEATURES
- Throttle valve for clamp ring systems with centrically mounted
disc
- Body with mutual bond for clamp ring connection
- Low consumption
- Fast and easy dismantling
- Maintenance-free
- Actuators: Hand lever, electric and pneumatic actuators

GENERAL APPLICATIONS
- Food industry
- Bulk goods
- Aspiration lines
- Dust separation
- Control of air/-gas fl ows (throttle valve)
- Exhaust pipes

CK-M 4.8
