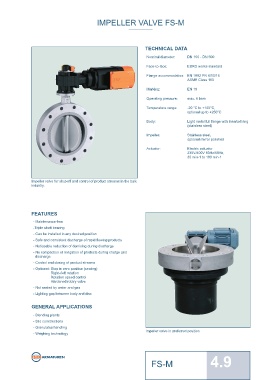

Page 160 - Catalogue 2019

IMPELLER VALVE FS-M

TECHNICAL DATA
Nominal diameter: DN 150 - DN 500

Face-to-face: EBRO works standard

Flange accommodation: EN 1092 PN 6/10/16
ASME Class 150
Marking: EN 19

Operating pressure: max. 6 bars

Temperature range: -20 °C to +100°C,
optional up to +250°C

Body: Light metal full flange with inserted ring
(stainless steel)

Impeller: Stainless steel,
optional mirror polished
Actuator: Electric actuator
230V/400V 50Hz/60Hz,
30 min-1 to 100 min-1

Impeller valve for shut-off and control of product streams in the bulk
industry.

FEATURES
- Maintenance-free
-Triple shaft bearing
- Can be installed in any desired position
- Safe and consistent discharge of rapid flowing products
- Noticeable reduction of demixing during discharge
- No compaction or levigation of products during charge and
discharge
- Control and dosing of product streams
- Optional: Stop in zero position (sealing)
Right-/left rotation
Rotation speed control
Hardened rotary valve
- Not sealed by water and gas
- Lighting gap between body and disc

GENERAL APPLICATIONS
- Blending plants
- Silo constructions
- Granulates handling
- Weighing technology Impeller valve in preferred position

FS-M 4.9
