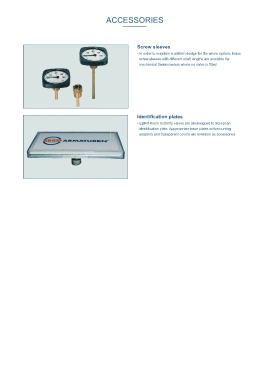

WAFER TYPE BUTTERFLY VALVE Z 011-A therm ACCESSORIES

Screw sleeves
L ØF
- In order to maintain a uniform design for the whole system, brass
screw sleeves with different shaft lengths are available for
mechanical thermometers where no valve is fi tted
H

A

C
Ø Di
ØD Z Identifi cation plates
- EBRO therm butterfl y valves are predesigned to accept an
B identifi cation plate. Apppropriate base plates with mounting
adapters and transparent covers are available as accessories

E

Dimensions [mm]
DN Size Weight
[mm] [in] A B C D Di E F H L Z [kg]
20 ¾ 104 45 149 59 31,5 33 54 70 155 - 1,5
25 1 104 45 149 63 31,5 33 54 70 155 - 1,5
32 1¼ 104 50 154 68 31,5 33 54 70 155 - 1,6
40 1½ 113 66 179 80 38 33 54 70 155 22 2,0
50 2 126 84 210 95 48,5 43 54 70 155 25 2,4
65 2½ 134 93 227 115 63,5 46 54 70 155 45 3,1
80 3 157 104 261 138 78,5 46 65 80 195 65 4,2
100 4 167 115 282 158 98,5 52 65 80 195 85 5,4
125 5 180 127 307 188 123,5 56 65 80 195 111 7,1
150 6 203 150 353 212 148 56 90 100 276 139 10,1
200 8 228 176 404 268 199 60 90 100 276 190 13,8
Subject to change without notice
