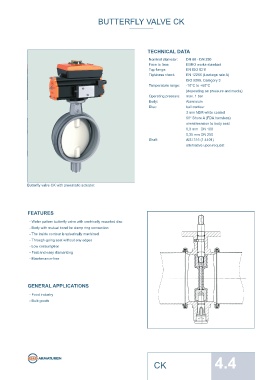

Page 148 - Catalogue 2019
P. 148
BUTTERFLY VALVE CK
TECHNICAL DATA
Nominal diameter: DN 80 - DN 250
Face to face: EBRO works standard
Top fl ange: EN ISO 5211
Tightness check: EN 12266 (Leakage rate A)
ISO 5208, Category 3
Temperature range: -10°C to +60°C
(depending on pressure and media)
Operating pressure: max. 1 bar
Body: Aluminium
Disc: ball contour
3 mm NBR-white coated
90° Shore A (FDA harmless)
overdimension to body seat
0,3 mm DN 100
0,35 mm DN 250
Shaft: AlSI 316 (1.4401)
alternative upon request
Butterfl y valve CK with pneumatic actuator.
FEATURES
- Wafer pattern butterfl y valve with centrically mounted disc
- Body with mutual bond for clamp ring connection
- The inside contour is spherically machined
- Through-going seat without any edges
- Low consumption
- Fast and easy dismantling
- Maintenance-free
GENERAL APPLICATIONS
- Food industry
- Bulk goods
CK 4.4
