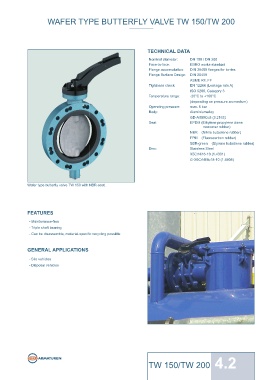

WAFER TYPE BUTTERFLY VALVE TW 150/TW 200







                                                                      TECHNICAL DATA

                                                                       Nominal diameter:  DN 150 / DN 200
                                                                       Face-to-face:     EBRO works standard
                                                                       Flange accomodation:  DIN 28459 fl anges for lorries
                                                                       Flange Surface Design:  DIN 28459
                                                                                         ASME RF, FF
                                                                       Tightness check:  EN 12266 (Leakage rate A)
                                                                                         ISO 5208, Category 3
                                                                       Temperature range:  -20°C to +160°C
                                                                                         (depending on pressure an medium)
                                                                       Operating pressure:  max. 6 bar
                                                                       Body:             Aluminiumalloy
                                                                                         GD-AlSi9Cu3 (3.2163)
                                                                       Seat:             EPDM (Ethylene propylene diene
                                                                                                      monomer rubber)
                                                                                         NBR    (Nitrile butadiene rubber)
                                                                                         FPM    (Fluorocarbon rubber)
                                                                                         SBR-green    (Styrene butadiene rubber)
                                                                       Disc:             Stainless Steel
                                                                                         X5CrNi18-10 (1.4301)
                                                                                         G-X6CrNiMo18-10 (1.4408)





                Wafer type butterfl y valve TW 150 with NBR-seat.






                FEATURES
                 - Maintenance-free
                 - Triple shaft bearing
                 - Can be disassemble, material-specifi c recycling possible


                GENERAL APPLICATIONS

                 - Silo vehicles
                 - Disposal vehicles

























                                                                       TW 150/TW 200                 4.2
