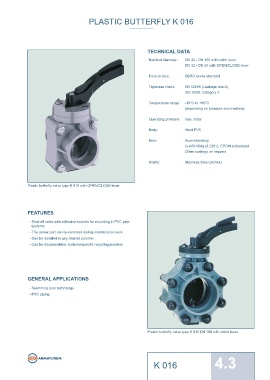

PLASTIC BUTTERFLY K 016








                                                                      TECHNICAL DATA
                                                                       Nominal diameter:  DN 32 - DN 100 with notch lever
                                                                                       DN 32 - DN 50 with OPEN/CLOSE lever

                                                                       Face-to-face:   EBRO works standard

                                                                       Tightness check:  EN 12266 (Leakage rate A)
                                                                                       ISO 5208, Category 3

                                                                       Temperature range:  -10°C to +60°C
                                                                                       (depending on pressure and medium)

                                                                       Operating pressure:  max. 6 bar

                                                                       Body:           Hard-PVC

                                                                       Disc:           Aluminiumalloy
                                                                                       G-AlSi10Mg (3.2381), EPDM-rubberized
                                                                                       Other coatings on request.

                                                                       Shafts:         Stainless Steel (A2/A4)




                 Plastic butterfl y valve type K 016 with OPEN/CLOSE lever.






                 FEATURES
                 - Shut-off valve with adhesive sockets for mounting in PVC pipe
                  systems
                 - The center part can be removed during maintenance work
                 - Can be installed in any desired position
                 - Can be disassembled, material-specifi c recycling possible







                 GENERAL APPLICATIONS

                 - Swimming pool technology
                 - PVC piping








                                                                      Plastic butterfl y valve type K 016 DN 100 with notch lever.
