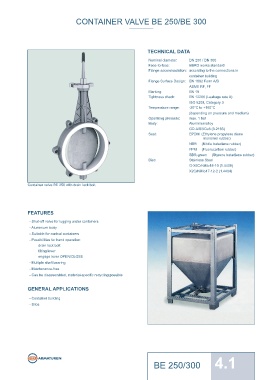

Page 140 - Catalogue 2019
P. 140
CONTAINER VALVE BE 250/BE 300
TECHNICAL DATA
Nominal diameter: DN 250 / DN 300
Face-to-face: EBRO works standard
Flange accommodation: according to the connections in
container building
Flange Surface Design: EN 1092 Form A/B
ASME RF, FF
Marking: EN 19
Tightness check: EN 12266 (Leakage rate A)
ISO 5208, Category 3
Temperature range: -20°C to +160°C
(depending on pressure and medium)
Operating pressure: max. 1 bar
Body: Aluminiumalloy
GD-AlSi9Cu3 (3.2163)
Seat: EPDM (Ethylene propylene diene
monomer rubber)
NBR (Nitrile butadiene rubber)
FPM (Fluorocarbon rubber)
SBR-green (Styrene butadiene rubber)
Disc: Stainless Steel
G-X6CrNiMo18-10 (1.4408)
X2CrNiMo17-12-2 (1.4404)
Container valve BE 250 with drain lock bolt.
FEATURES
- Shut-off valve for lugging under containers
- Aluminium body
- Suitable for conical containers
- Possibilities for hand operation:
drain lock bolt
tilting lever
engage lever OPEN/CLOSE
- Multiple shaft bearing
- Maintenance-free
- Can be disassembled, material-specifi c recycling possible
GENERAL APPLICATIONS
- Container building
- Silos
BE 250/300 4.1
