Page 168 - Catalogue 2019

INFLATABLE SEAT “INFLAS ” INFLATABLE SEAT “INFLAS ”
®
®

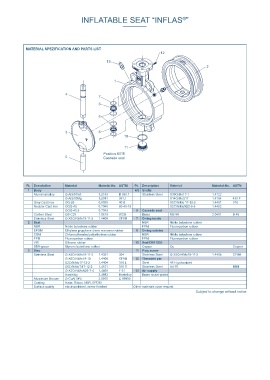

ØF MATERIAL SPEZIFICATION AND PARTS LIST
□G 12

H 1 13 2

1

A
4
7
6
C
ØD Z 8

3 6
10
7
B
11
Position 6/7/8
5 Cascade seal
E
ØD
Z 011-A Inflas with bare shaft end according to EN ISO 5211
®

Pt. Description Material Material-No. ASTM Pt. Description Material Material-No. ASTM
Dimensions [mm]
Weight 1 Body 4/5 Shafts
DN Size [kg] Aluminiumalloy G-AlSi9Cu3 3.2163 B 380.1 Stainless Steel X39CrMo17-1 1.4122
[mm] [in] A B C D E F Flange G H1 Z G-AlSi10Mg 3.2381 361.1 X14CrMoS17 1.4104 430 F
50 2 126 84 210 95 43 54 F04 11 12 25 2,2 Grey Cast Iron GG-25 0.6025 40 B X5CrNiMo 17-12-2 1.4401 316
1.4462
GGG-40
0.7040
60-40-18
X2CrNiMoN22-5-3
Nodular Cast Iron
65 2½ 134 93 227 115 46 54 F04 11 12 45 2,9 GGG-40.3 0.7043 6 Cascade seal
80 3 157 104 261 138 46 65 F05 14 16 65 4,0 Carbon Steel GS-C25 1.0619 WCB Brass MS 58 2.0401 B 45
100 4 167 115 282 158 52 65 F05 14 16 85 5,2 2 Stainless Steel G-X5CrNiMo19-11-2 1.4408 CF8M 7 O-ring inside Nitrile butadiene rubber
Seat
NBR
125 5 180 127 307 188 56 65 F05 14 16 111 6,9 NBR Nitrile butadiene rubber FPM Fluorocarbon rubber
150 6 203 150 353 212 56 90 F07 17 19 139 9,5 EPDM Ethylene propylene diene monomer rubber 8 O-ring outside
200 8 228 176 404 268 60 90 F07 17 19 190 13,2 CSM Chlorosulfonated polyethylene rubber NBR Nitrile butadiene rubber
FPM
FPM
Fluorocarbon rubber
Fluorocarbon rubber
250 10 266 212 478 320 68 125 F10 22 24 240 22,5 VSI Silicone rubber 10 Seal DIN 7603
300 12 291 237 528 370 78 125 F10 22 24 287 31,5 SBR-green Styrene butadiene rubber Copper Cu Copper
350 14 332 269 601 408 78 150 F12 * * 330 39,4 3 Disc G-X5CrNiMo19-11-2 1.4301 304 11 Plug screw G-X5CrNiMo19-11-2 1.4408 CF8M
Stainless Steel
Stainless Steel
400 16 363 314 677 470 102 150 F12 * * 378 58,7 G-X6CrNiMo18-10 1.4408 CF8M 12 Threaded pin
500 20 437 371 808 574 127 210 F14/F16 * * 474 107,0 X2CrNiMo17-12-2 1.4404 316 L Steel 45 H galvanized
600 24 498 469 967 675 154 300 F16/F25 * * 563 171,0 X6CrNiMoTi17-12-2 1.4571 316 Ti Stainless Steel A4-70 B8M
* According to mounted actuator Subject to change without notice G-X2CrNiMoN26-7-4 1.4469 F 51 13 Air supply
Brass nickel-plated
Hastelloy
Hastelloy
2.4883
Aluminium Bronze G-CuAl10Ni 2.0975 C 95800
Coating Halar, Rilsan, NBR, EPDM
Surface quality electropolished, mirror finished Other materials upon request
Subject to change without notice
