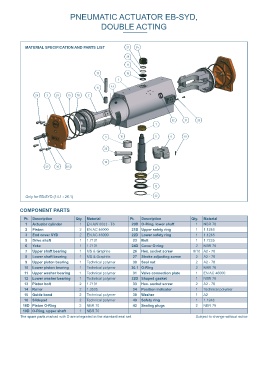

PNEUMATIC ACTUATOR EB-SYD, PNEUMATIC ACTUATOR EB-SYD, PNEUMATIC ACTUATOR EB-SYD,

DOUBLE-ACTING DOUBLE ACTING DOUBLE ACTING

Namur I EB 4.1 - EB 18.1= G¼“ MATERIAL SPECIFICATION AND PARTS LIST MATERIAL SPECIFICATION AND PARTS LIST
Namur II EB 20.1 - EB 26.1= G½“
□G/T=Depth

L
Ø F

H1

M
H

J
N
K

Dimensions [mm] Weight
Type ØF G** H H1 J K L M N T [kg]
EB 4.1 F04/05* 10/11/12 66 30 57 49 148 30 80 13/16 1,1 Only for EB-SYD (4.1 - 12.1) Only for EB-SYD (14.1 - 26.1)
EB 5.1 F04/05* 10/11/12/14 77 30 72 57 174 30 80 13/16 1,7
EB 6.1 F04/05/07* 11/12/14/16/17 91 30 88 66 224 30 80 19 3,0
EB 8.1 F05/07/10*** 12/14/16/17/22 108 30 100 71 258 30 80 19 4,1 COMPONENT PARTS COMPONENT PARTS
EB 9.1 F07/10 14/16/17/22 120 30 113 78 311 30 80 24 6,7 Pt. Description Qty. Material Pt. Description Qty. Material Pt. Description Qty. Material Pt. Description Qty. Material
EB 10.1 F07/10 14/16/17/22 129 30 122 82 334 30 80 24 7,5 1 Actuator cylinder 1 EN AW 6063 - T6 17D End cover sealing 2 NBR 70 1 Actuator cylinder 1 EN AW 6063 - T6 20D O-Ring, lower shaft 1 NBR 70
EB 12.1 F10/12 17/22/24/27 156 30 145 93 392 30 80 29 12,7 2 Piston 2 EN AC 46000 18D Piston O-Ring 2 NBR 70 2 Piston 2 EN AC 46000 21D Upper safety ring 1 1.1248
EB 14.1 F12/16/25*** 36 189 30 154 102 433 30 80 38 21,3 3 End cover L SYD 1 EN AC 46000 19D O-Ring, upper shaft 1 NBR 70 3 End cover SYD 2 EN AC 46000 22D Lower safety ring 1 1.1248
EB 16.1 F12/16/25*** 46 212 30 172 102 525 30 80 48 29,0 4 End cover R SYD 1 EN AC 46000 20D O-Ring, lower shaft 1 NBR 70 5 Drive shaft 1 1.7131 23 Bolt 1 1.7225
EB 18.1 F12/16/25*** 46 243 30 196 103 590 30 80 48 41,0 5 Drive shaft 1 1.7131 21D Safety ring 1 1.1248 6 Yoke 1 1.7131 24D Cover O-ring 2 NBR 70
EB 20.1 F12/16/25*** 46 272 30 234 120 611 30 80 48 57,1 6 Yoke 1 1.7131 / Sint - D30 23 Bolt 1 1.7225 7 Upper shaft bearing 1 MS & Graphite 26 Hex. socket screw 8/16 A2 - 70
EB 22.1 F16/25*** 55 283 30 244 125 698 30 80 59 72,5 7 Upper shaft bearing 1 Sint - B50 26 Hex. socket screw 8 A2 - 70 8 Lower shaft bearing 1 MS & Graphite 27 Stroke adjusting screw 2 A2 - 70
EB 26.1 F16/25*** 55 350 30 336 168 896 30 80 59 130,2 8 Lower shaft bearing 1 Sint - B50 27 Stroke adjusting screw 2 A2 - 70 9 Upper piston bearing 1 Technical polymer 30 Seal nut 2 A2 - 70
* F04/F05 no combined flange available Subject to change without notice 9 Upper piston bearing 1 technical polymer 30 Seal nut 2 A2 - 70 10 Lower piston bearing 1 Technical polymer 30.1 O-Ring 2 NBR 70
** Options (Standard = BOLD) 10 Lower piston bearing 1 technical polymer 31 Valve connection plate 1 EN AC 46000 11 Upper washer bearing 1 Technical polymer 31 Valve connection plate 1 EN AC 46000
*** Mounting flange F25
11 Washer bearing 1 technical polymer 32D Shaped gasket 1 NBR 70 12 Lower washer bearing 1 Technical polymer 32D Shaped gasket 1 NBR 70
13 Piston bolt 2 1.7131 33 Hex. socket screw 2 A2 - 70 13 Piston bolt 2 1.7131 33 Hex. socket screw 2 A2 - 70
CLOSING TIME AND AIR CONSUMPTION 14 Roller 2 1.3505 34 Position indicator 1 technical polymer 14 Roller 2 1.3505 34 Position indicator 1 Technical polymer
Type EB4.1 EB 5.1 EB 6.1 EB 8.1 EB 9.1 EB 10.1 EB 12.1 EB 14.1 EB 16.1 EB 18.1 EB 20.1 EB 22.1 EB26.1 15 Guide band 2 technical polymer 39 Washer 1 A2 15 Guide band 2 Technical polymer 39 Washer 1 A2
Closing time EB-SYD in sec.* 0,25 0,25 0,35 0,45 0,55 0,70 1,00 <1,5 <1,5 <2,0 <2,0 <2,0 <2,0 16 Slidepad 2 technical polymer 16 Slidepad 2 Technical polymer 40 Safety ring 1 1.1248
Filling volume 0,18 0,46 0,91 1,49 2,33 3,26 5,63 7,52 11,01 16,49 22,79 29,7 60,94 The spare parts marked with D are integrated in the standard seal set. Subject to change without notice 18D Piston O-Ring 2 NBR 70 43 Sealing plugs 2 NBR 70
Standard liter/stroke at 1 atm:** 19D O-Ring, upper shaft 1 NBR 70
* closing times with unthrottled air exhaust and air supply, 6 bar control pressure at no load operation The spare parts marked with D are integrated in the standard seal set. Subject to change without notice
** loadair consumption = filling volume x control

Closing-/ opening times can be adjusted up to 60 sec. by using the EBRO speed control block (depending on type of actuator).
