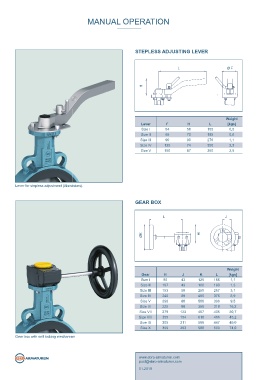

Page 199 - Catalogue 2019
P. 199
MANUAL OPERATION
STEPLESS ADJUSTING LEVER
L Ø F
H
Weight
Lever F H L [kgs]
Size I 54 58 155 0,5
Size II 65 70 195 0,6
Size III 90 90 276 1,1
Size IV 125 74 350 2,3
Size V 150 87 350 2,9
Lever for stepless adjustment (Aluminium).
GEAR BOX
L J
ØK H
Weight
Gear H J K L [kgs]
Size I 90 43 125 166 1,1
Size II 107 43 160 190 1,3
Size III 153 50 250 267 3,1
Size IV 240 80 400 376 8,9
Size V 290 80 500 396 9,5
Size VI 225 90 350 318 16,2
Size VII 279 123 457 405 30,7
Size VIII 355 154 610 466 45,2
Size IX 305 211 500 447 49,0
Size X 309 263 500 500 74,0
Gear box with self locking mechanism
www.ebro-armaturen.com
post@ebro-armaturen.com
01.2019
