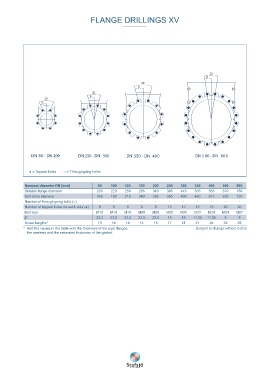

KNIFE GATE VALVE XV FLANGE DRILLINGS XV
DN 80 - DN 200 DN 250 - DN 300 DN 350 - DN 400 DN 5 00 - DN 600
Knife gate valve type XV ● = Tapped holes ○ = Throughgoing holes
Dimensions [mm] Nominal diameter DN [mm] 80 100 125 150 200 250 300 350 400 500 600
DN Size Weight Outside flange diameter 200 220 250 285 340 395 445 505 565 670 780
[mm] [in] A B C D E F G H J K L Bolt cirlce diameter 160 180 210 240 295 350 400 460 515 620 725
80 3 80 50 123 80 200 89 444 552 177 690 314 10 Number of throughgoing bolts (○) - - - - - - - - - - -
100 4 100 52 154 80 200 101 482 590 202 728 352 13 Number of tapped holes on each side (●) 8 8 8 8 8 12 12 16 16 20 20
125 5 - - - - - - - - - - - - Bolt size M16 M16 M16 M20 M20 M20 M20 M20 M24 M24 M27
150 6 150 56 212 80 250 128 567 725 255 813 437 16 β° 22,5 22,5 22,5 22,5 22,5 15 15 11,25 11,25 9 9
200 8 200 60 268 145 315 155 691 912 309 868 546 30 Screw lengths* 13 14 14 14 15 17 21 21 24 32 29
250 10 250 68 322 145 315 195 785 1111 389 994 640 48 * Add the values in the table with the thickness of the pipe flanges, Subject to change without notice
300 12 300 78 372 145 315 229 879 1205 457 1149 734 63 the washers and the estimated thickness of the gasket.
350 14 350 78 432 175 400 256 1021 1508 512 1308 841 100
400 16 400 89 481 175 400 288 1116 1603 576 1453 936 135
450 18 450 89 531 200 520 309 1263 1843 618 1591 1056 170
500 20 500 114 586 250 520 340 1342 1939 681 1770 1152 200
600 24 600 114 686 260 635 400 1546 2230 799 2076 1356 370
Actuator EM is rotated 45° for DN 80 - DN 150 Subject to change without notice
