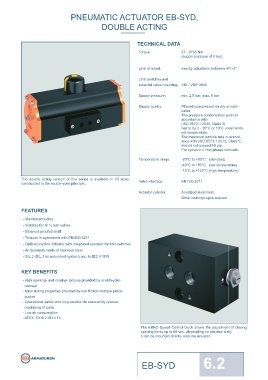

Page 200 - Catalogue 2019

PNEUMATIC ACTUATOR EB-SYD, PNEUMATIC ACTUATOR EB-SYD,

DOUBLE ACTING DOUBLE ACTING

TECHNICAL DATA
FUNCTION ( ) ( )
Torque: 27 - 9768 Nm
(supply pressure of 6 bar)

Limit of travel: exactly adjustable between -8°/+3°

Limit switches and
solenoid valve mounting: VDI / VDE 3845

Supply pressure: min. 2,5 bar, max. 8 bar
Open Close
Supply quality: Filtered compressed air dry or lubri-
When the left control connection is pressurized, the pistons are the yoke turns clockwise to close the valve. cated.
The pressure condensation point in
pushed together with the yoke turning counter-clockwise to open The stroke of the piston can be limited by adjusting the screws accordance with
the valve. When the right control connection is pressurized, located in the end covers. (ISO 8573-1:2010, Class 3)
has to be ≥ - 20°C or 10°C under ambi-
ent temperature.
The maximum particle size in accord-
ance with (ISO 8573-1:2010, Class 5)
TORQUE (Nm) should not exceed 40 µm.
For cycles ≥ 4 /min please lubricate.
Control pressure
Type 2,5 bar 3 bar 3,5 bar 4 bar 4,5 bar 5 bar 5,5 bar 6 bar 7 bar 8 bar Temperature range: -20°C to +80°C (standard)
EB 4.1 11 13 16 18 20 22 25 27 31 36 -40°C to +80°C (low temperature)
EB 5.1 32 38 44 51 57 63 70 76 89 101 -15°C to +120°C (high temperature)
EB 6.1 65 78 91 104 117 130 143 156 182 208 The double acting version of this series is available in 13 sizes,
EB 8.1 104 125 146 166 187 208 229 250 292 333 constructed to the scotch-yoke principle. Valve interface: EN ISO 5211
EB 9.1 157 189 220 252 283 315 346 378 441 504
EB 10.1 220 265 309 353 397 441 485 530 618 706 Actuator cylinder: Anodized aluminium,
EB 12.1 381 457 534 610 686 762 839 935 1067 1220 Other coatings upon request.
EB 14.1 557 668 780 891 1002 1114 1226 1337 1560 1782
EB 16.1 846 1011 1180 1348 1517 1685 1854 2022 2359 2696 FEATURES
EB 18.1 1098 1317 1537 1756 1976 2195 2415 2634 3073 3512
EB 20.1 1541 1850 2158 2466 2775 3082 3391 3700 4316 4932 - Maintenance-free
EB 22.1 2125 2550 2975 3400 3825 4250 4675 5100 5950 6800 - Suitable for all ¼ turn valves
EB 26.1 4070 4884 5698 6512 7326 8140 8954 9768 11396 13024 - Blow-out proofed shaft
Subject to change without notice - Torques in agreement with EN ISO 5211
- Optical position indicator with integrated operator for limit switches
- All fasteners made of stainless steel
- SIL 2 (SIL 3 as redundant system) acc. to IEC 61508
The torques shown in the diagram are measured values. The
required size of the actuator can be established by comparing the
values of the actuator with the required torque of the valve.
KEY BENEFITS
Especially non-lubricant media (e.g. bulk goods and dry gases) may - High opening- and closing- torques provided by scotch-yoke
Effective torque in Nm → guides
cause an increasement of the valve torque. Choosing an actuator in
critical limits, please contact our engineers. concept
- Ideal sliding properties provided by low friction multiple piston

- Operational safety and long service life assured by precise
machining of parts
- Low air consumption
- ATEX: EX II 2 GD c Tx

The EBRO Speed Control block allows the adjustment of closing/
opening times up to 60 sec. (depending on actuator size).
It can be mounted directly onto the actuator.
0 10 20 30 40 50 60 70 80 90
Turning angle in ° →
Typical torque curve of a scotch-yoke actuator. www.ebro-armaturen.com

EB-SYD 6.2 post@ebro-armaturen.com
