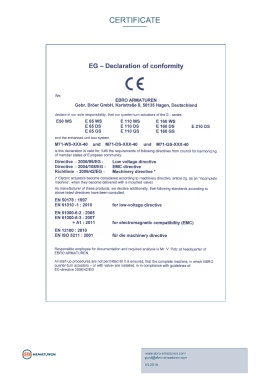

ELECTRIC ACTUATORS E 50 - E 210 CERTIFICATE

TECHNICAL DATA

Types: E 50 - E 210
Duty class: Class C acc. to prEN WI69000095
Valve interface: EN ISO 5211
Actuation time: 6 s - 180 s
Corrosion protection: C4 acc. to prEN WI 6900095
tested acc. to EN 600068-2-52
Protection class: IP 67 acc. to EN IEC 60529
Insulation class: F
Limit switches: max. 250 V AC, 3A for DS-Actuators
max. 250 V AC, 3A for WS-Actuators
max. 24 V DC, 10 A for GS-Actuators
Operation temperature: -20°C to +70°C
Cable glands: 2 x M20 x 1,5; Ø min = 6 mm,
Ø max = 13 mm
Hand wheel: 15 revolutions for for 90°
Hand wheel torque: 8 Nm for E 50
4 Nm for E 65
20 Nm for E 110
35 Nm for E 160
50 Nm for E 210

E 65 and E 110.

FEATURES

- Robust aluminum body
- Completely ball beared wormgear
- Safe arresting by self-inhibition
- Changeable clutch nuts for mounting on different shaft ends
- Mechanical position indicator disc for an optical control of the
valve´s position
- Motor with thermic winding protection switch
- Hand wheel enables immediate hand emergency operation if
necessary
- Maintenance-free, long life service by continious lubrication

GENERAL APPLICATIONS:
- Water and waste water technology
- Chemical industry
- Car industry
- Civil engineering
- Everywhere applicable, where butterfly valves are installed

E 160 and E 210.
