Page 218 - Catalogue 2019

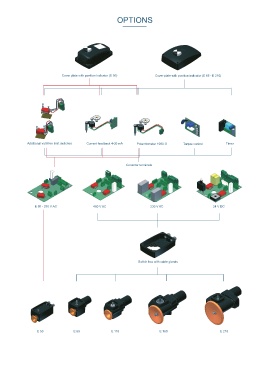

DIMENSIONS E 50 - E 210 OPTIONS

F

H B A Cover plate with position indicator (E 50) Cover plate with position indicator (E 65 - E 210)

E

C

I
D
J Additional volt-free limit switches Current feedback 4-20 mA Potentiometer 1000 Ω Torque control Timer

Conector terminals
G

Dimensions [mm]
Weight
Type A B C D E F G H I J [kg]
E 50 110 149 210 123 87 124 126 42 80 73 5
E 65 119 172 235 123 112 139 125 42 80 78 7 E 50 - 230 V AC 400 V AC 230 V AC 24 V DC
E 110 136 247 257 145 112 139 150 58 125 88 14
E 160 157 280 282 170 112 139 175 89 200 112 25
E 210 212 352 274 162 112 139 240 125 315 84 40
Subject to change without notice

FEATURES
Valve interface: EN ISO 5211

Type E 50 E 65 E 65 E 65 E 110 E 110 E 110 E 160 E 160 E 160 E 210
DS
WS
GS
GS
DS
DS
GS
WS
WS
DS
WS
Actuaction time
from 0° - to 90° 25 s 6 s 6 s 6 s 12 s 12 s 6 s 24 s 24 s 12 s 24 s Switch box with cable glands
Rated torque 40 Nm 100 Nm 100 Nm 100 Nm 400 Nm 400 Nm 360 Nm 1000 Nm 1000 Nm 800 Nm 3500 Nm
Rated current 0,15 A 0,7 A 0,3 A 5 A 1,3 A 1,0 A 8,8 A 1,3 A 1,0 A 8,8 A 1 A
Starting current 0,18 A 1,0 A 0,3 A 8,0 A 2 A 1,8 A 12,5 A 2 A 1,8 A 12,5 A 3,2 A
Power consumption 0,04 kW 0,16 kW 0,09 kW 0,08 kW 0,26 kW 0,22 kW 0,4 kW 0,26 kW 0,22 kW 0,4 kW 0,54 kW
Rated voltage 230 V 230 V 400 V 24 V 230 V 400 V 24 V 230 V 400 V 24 V 400 V
*Frequency 50 Hz 50 Hz 50 Hz - 50 Hz 50 Hz - 50 Hz 50 Hz - 50 Hz
Duty cycle 30 % 30 % 30% 30% 30% 30% 30 % 30% 30% 30% 30%
Protection class IP 67 IP 67 IP 67 IP 67 IP 67 IP 67 IP 67 IP 67 IP 67 IP 67 IP 67
*Frequency 60 Hz upon request
E 50 E 65 E 110 E 160 E 210
