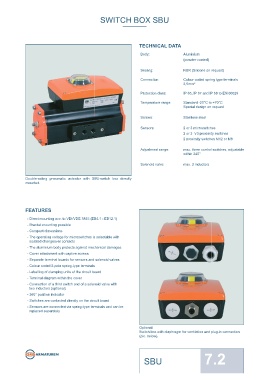

SWITCH BOX SBU SWITCH BOX SBU

TECHNICAL DATA

Body: Aluminium
(powder coated) 114 68 98

Sealing: NBR (Silicone on request)

Connection: Colour coded spring type terminals
2,5mm 2

Protection class: IP 65, IP 67 and IP 68 to EN 60529
Temperature range: Standard -20°C to +70°C
Special design on request 70
Screws: Stainless steel

Sensors: 2 or 3 microswitches 125
2 or 3 V3 proximity switches
2 proximity switches M12 or M8

Adjustment range: max. three control switches, adjustable
within 240° 80

Solenoid valve: max. 2 inductors

Double-acting pneumatic actuator with SBU-switch box directly
mounted.

30
FEATURES

- Direct mounting acc. to VDI/VDE 3845 (EB4.1 - EB12.1)
- Bracket mounting possible
- Compact dimensions
- The operating voltage for microswitches is selectable with
isolated changeover contacts
- The aluminium body protects against mechanical damages Subject to changes without notice.
- Cover attachment with captive screws
- Separate terminal boards for sensors and solenoid valves
- Colour coded 2-pole spring-type terminals
- Labelling of clamping units of the circuit board
- Terminal diagram within the cover
- Connection of a third switch and of a solenoid valve with
two inductors (optional)
- 360° position indicator
- Switches are contacted directly on the circuit board
- Sensors are connected via spring-type terminals and can be
replaced separately

Optional:
Switch box with diaphragm for ventilation and plug-in connection
(pic. below).
