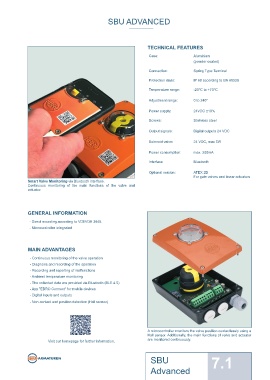

Page 220 - Catalogue 2019

SBU ADVANCED

TECHNICAL FEATURES

Case: Aluminium
(powder coated)

Connection: Spring Type Terminal

Protection class: IP 68 according to EN 60529
Temperature range: -20°C to +70°C

Adjustment range: 0 to 240°

Power supply: 24VDC ±10%

Screws: Stainless steel

Output signals: Digital outputs 24 VDC

Solenoid valve: 24 VDC, max 5W

Power consumption: max. 200mA

Interface Bluetooth

Optional version: ATEX 2D
For gate valves and linear actuators
Smart Valve Monitoring via Bluetooth interface.
Continuous monitoring of the main functions of the valve and
actuator.

GENERAL INFORMATION
- Direct mounting according to VDI/VDE 3845.
- Microcontroller integrated

MAIN ADVANTAGES

- Continuous monitoring of the valve operation
- Diagnosis and recording of the operation
- Recording and reporting of malfunctions
- Ambient temperature monitoring
- The collected data are provided via Bluetooth (BLE 4.0)
- App "EBRO Connect" for mobile devices
- Digital inputs and outputs
- Non-contact end position detection (Hall sensor)

A microcontroller monitors the valve position contactlessly using a
Hall sensor. Additionally, the main functions of valve and actuator
Visit our homepage for further information. are monitored continuously.

SBU 7.1

Advanced
