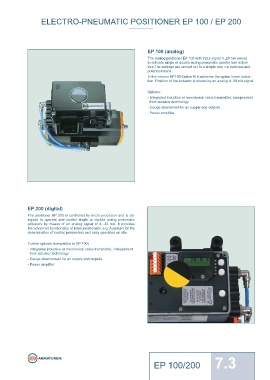

ELECTRO-PNEUMATIC POSITIONER EP 100 / EP 200
EP 100 (analog)
The analog positioner EP 100 with input signal 4..20 mA serves
to activate single or double acting pneumatic quarter turn actua-
tors.The settings are carried out in a simple way via switches and
potentiometers.
In the version EP100-Option R it achieves the option travel indica-
tion. Position of the actuator is shown by an analog 4..20 mA signal.
Options:
- Integrated inductive or mechanical value transmitter, independent
from acutator technology
- Gauge attachment for air supply and outputs
- Power amplifier
EP 200 (digital)
The positioner EP 200 is controlled by micro processor and is de-
signed to operate and control single or double acting pneumatic
actuators by means of an analog signal of 4...20 mA. It provides
the advanced functionality of latest positioners, e.g. Autostart for the
determination of control parameters and easy operation on site.
Further options (kompatible to EP 100)
- Integrated inductive or mechanical value transmitter, independent
from actuator technology
- Gauge attachement for air supply and outputs
- Power amplifier
EP 100/200 7.3
