P. 231

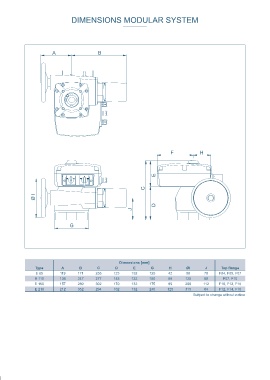

DIMENSIONS MODULAR SYSTEM MODULAR MOUNTING
A B
Body (upper part)
Positioner Additional limit switches Current feedback Current feedback
+ Positioner
F H
E
C Main board three phase AC Main board AC
Ø I
D
J
G
Body (lower part) Body (lower part) with local control
Dimensions [mm]
Type A B C D E G H ØI J Top flange
E 65 119 171 255 123 132 125 42 80 78 F04, F05, F07
E 110 136 247 277 145 132 150 58 125 88 F07, F10
E 160 157 280 302 170 132 175 89 200 112 F10, F12, F16
E 210 212 352 294 162 132 240 125 315 84 F12, F14, F16
Subject to change without notice
E 65 E 110 E 160 E 210
