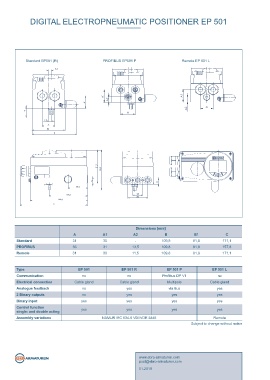

DIGITAL ELECTROPNEUMATIC POSITIONER EP 501
Standard EP501 (R) PROFIBUS EP501 P Remote EP 501 L
7,5
A1 A1
A2
A1
A
A2
17 A
7,5
A
B1
B
81,9
98,9
10 10
49,9
97,4 25
50
144,6
C
Dimensions [mm]
A A1 A2 B B1 C
Standard 31 30 - 109,8 81,8 171,1
PROFIBUS 36 31 13,5 109,8 81,8 157,8
Remote 31 30 11,5 109,8 81,8 171,1
Type EP 501 EP 501 R EP 501 P EP 501 L
Communication no no Profibus DP V1 no
Electrical connection Cable gland Cable gland Multipole Cable gland
Analogue feedback no yes via Bus yes
2 Binary outputs no yes yes yes
Binary input yes yes yes yes
Control function yes yes yes yes
single- and double acting
Assembly variations NAMUR IEC 534-6 VDI/VDE 3845 Remote
