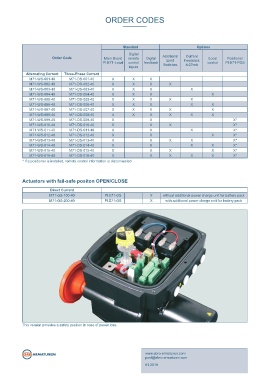

MODULAR SYSTEM FOR ELECTRIC ACTUATORS ORDER CODES

TECHNICAL DATA Standard Options

Nominal torque: 100 Nm to 4000 Nm Digital Additional Current
Protection class: IP67 Order Code Main Board remote Digital Limit Feedback Local Positioner
Duty cycle: up to Class C (max.1200 c/n) PI.E71-Local control feedback Switches 4-20mA control PI.E71-POS
inputs
acc. to prEN 15714-2
Limit switches: max. 250V AC, 3A Alternating Current Three-Phase Current
Torque control: directional contact, max. 250V AC 5A M71-WS-001-40 M71-DS-001-40 X X X
Switch box heater: supply 230V AC permanently, 5W M71-WS-002-40 M71-DS-002-40 X X X X
Potentiometer: 1000 Ω M71-WS-003-40 M71-DS-003-40 X X X X
Current feedback: 4-20mA, supply max. 30V DC M71-WS-004-40 M71-DS-004-40 X X X X
Thermal motor switch: integrated M71-WS-005-40 M71-DS-005-40 X X X X X
Insulation class: F M71-WS-006-40 M71-DS-006-40 X X X X X
Corrosion protectio C4 acc. to prEN 15714-2, tested acc. M71-WS-007-40 M71-DS-007-40 X X X X X
Class: to EN 60068-2-52 M71-WS-008-40 M71-DS-008-40 X X X X X X
Cable entries: 4 x M20 x 1,5 M71-WS-009-40 M71-DS-009-40 X X X*
Ø-min = 6 mm M71-WS-010-40 M71-DS-010-40 X X X X*
Ø-max = 13 mm M71-WS-011-40 M71-DS-011-40 X X X X*
Operation temperature: -20°C to +70°C M71-WS-012-40 M71-DS-012-40 X X X X*
Hand wheel: 15 revolutions 90° M71-WS-013-40 M71-DS-013-40 X X X X X*
Hand wheel M71-WS-014-40 M71-DS-014-40 X X X X X*
Torque: 4 Nm for E65 M71-WS-015-40 M71-DS-015-40 X X X X X*
20 Nm for E110 M71-WS-016-40 M71-DS-016-40 X X X X X X*
35 Nm for E160 * If a positioner is installed, remote control information is disconnected
50 Nm for E210
Supply voltage: from 110V AC/1~ to 480V AC/3~
Electric quarter turn actuators series E 65 - E 210 with modular
system are designed to automate control valves. Actuators with fail-safe positon OPEN/CLOSE
Direct Current
M71-GS-100-40 Pl.E71-GS X without additional power charge unit for battery pack
M71-GS-200-40 Pl.E71-GS X with additional power charge unit for battery pack

GENERAL APPLICATIONS

- Integrated torque control
- Digital control input
- Integrated 24V DC control voltage supply
- 5 digital feedback signals
- Switch box heater
- Prepared for further options
- Actuator mounting and optional modules as modular system
- Self-locking, separatly capsuled worm gear ensures a safe
positioning of the actuating element
- Top fl ange acc. to EN ISO 5211
- Replaceable shaft notch enables the adpation of different valves
- The optical position indicator shows the exact positon of the
actuating element

Complete equipment with additional board for positioner. This version provides a safety position in case of power loss.
